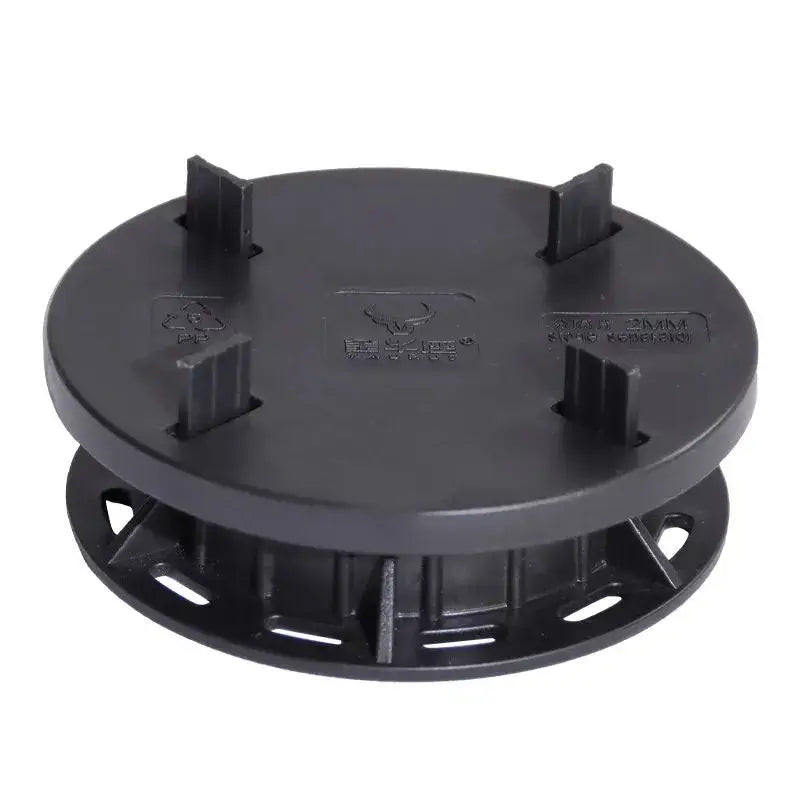

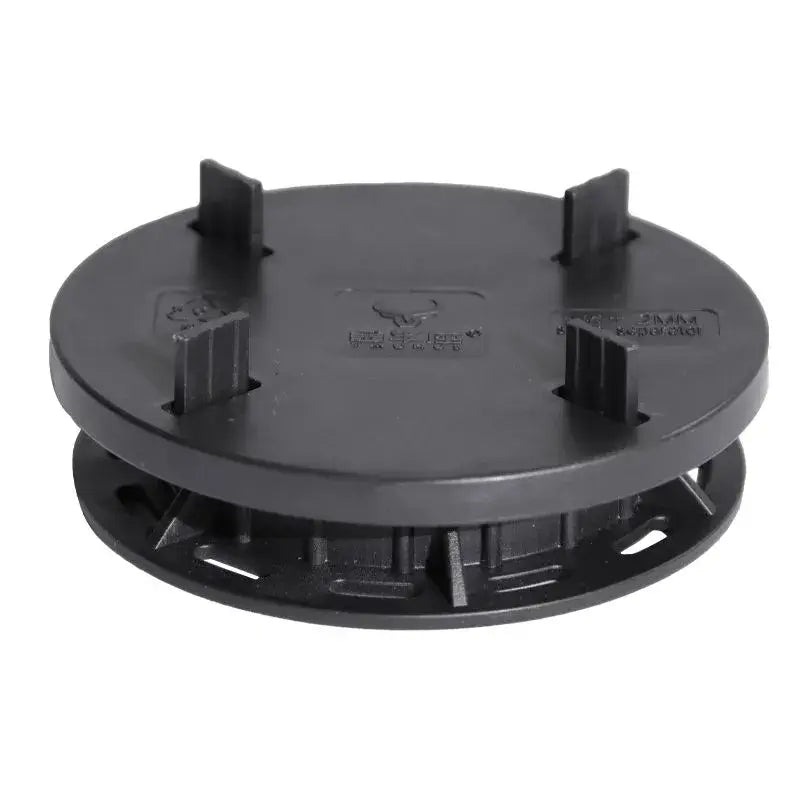

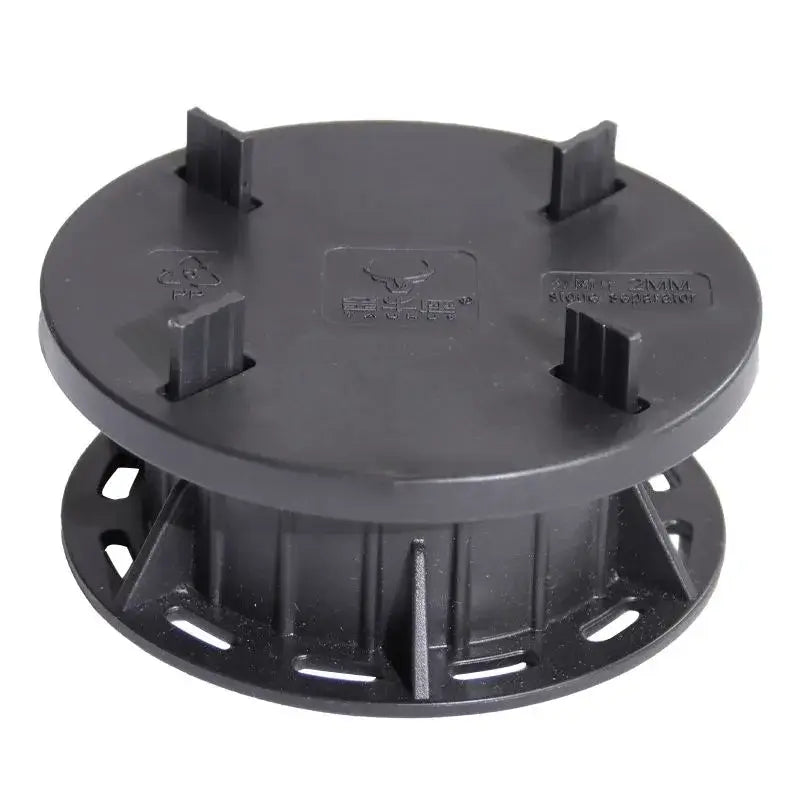

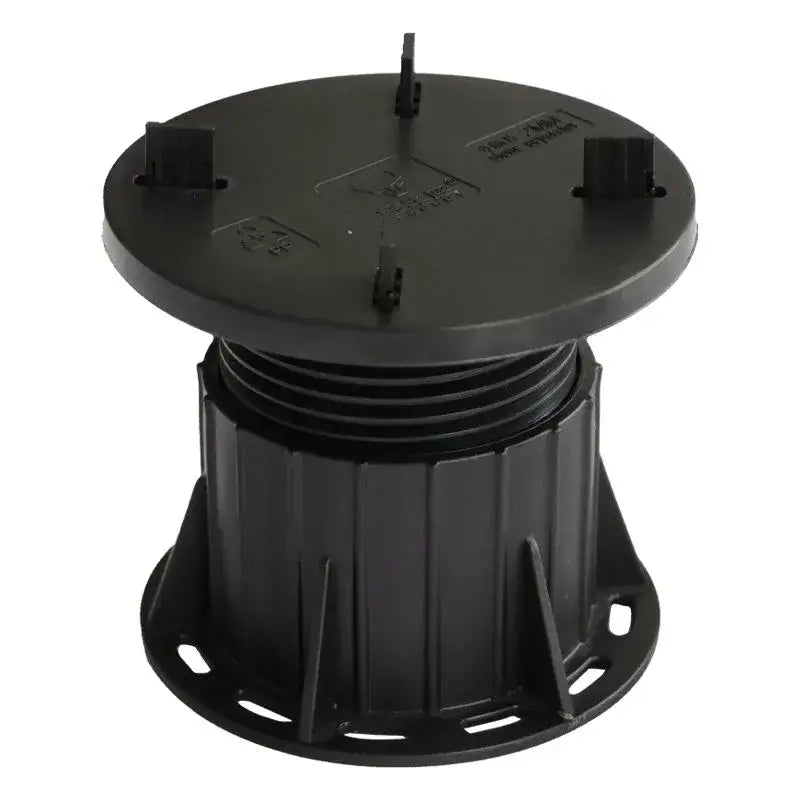

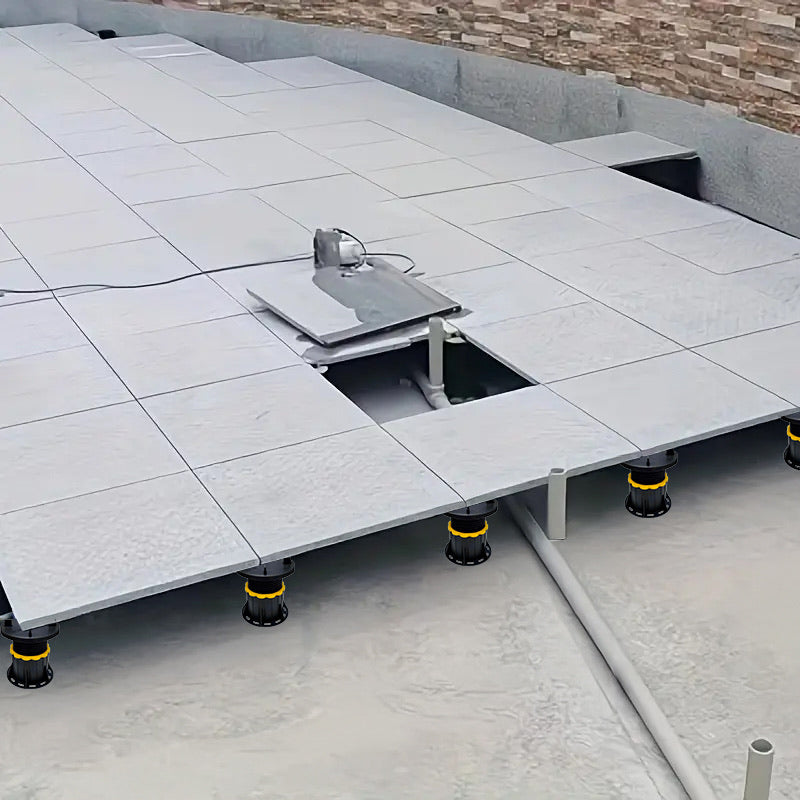

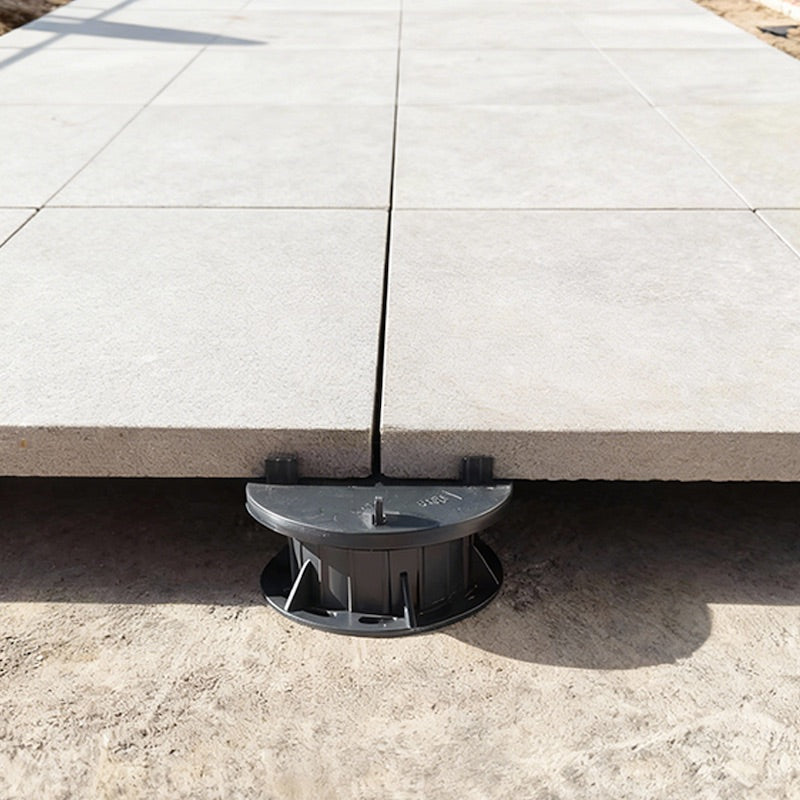

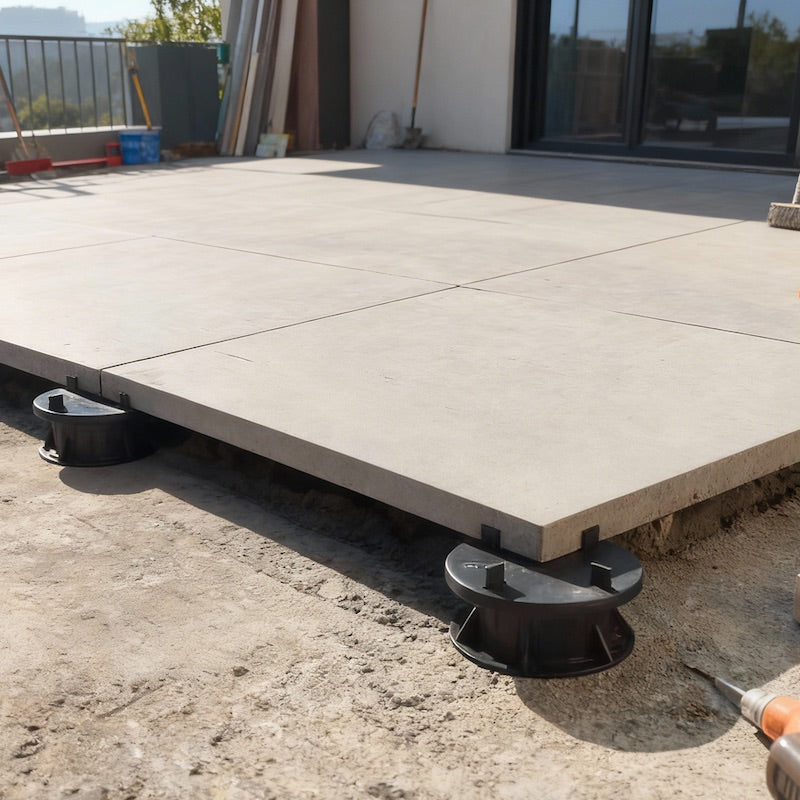

Rugged, compact and cost-effective pedestal system for raised surfaces. Ideal as adjustable joist supports, durable decking base supports, and precise adjustable decking feet across interior floors, wall cladding and balcony applications.
Important: Overall load capacity reduces as height extenders are added; ensure at least three threads of engagement between any two threaded parts for safe use. Series data derived from KE-S spec.
The KE-S series provides a 20–90 mm adjustment envelope with a typical safe working range of 500–800 kg, depending on model configuration and installation conditions.
Heights available: 18, 23, 33, 52 mm.
Bearing face Ø 90 mm; thickness 4.0 mm.
Post minor outside Ø (excl. thread) 54.8 mm.
Heights available: 16, 21, 31, 50 mm.
Base plate Ø 90.0 mm; thickness 2.5 mm.
Post: 6 ribs; internal Ø 55.3 mm.
86 mm base with underside relief openings.
Colour: yellow; height 8.0 mm.
Height: 2.0 mm.
Support surface diameter: 94.8 mm.

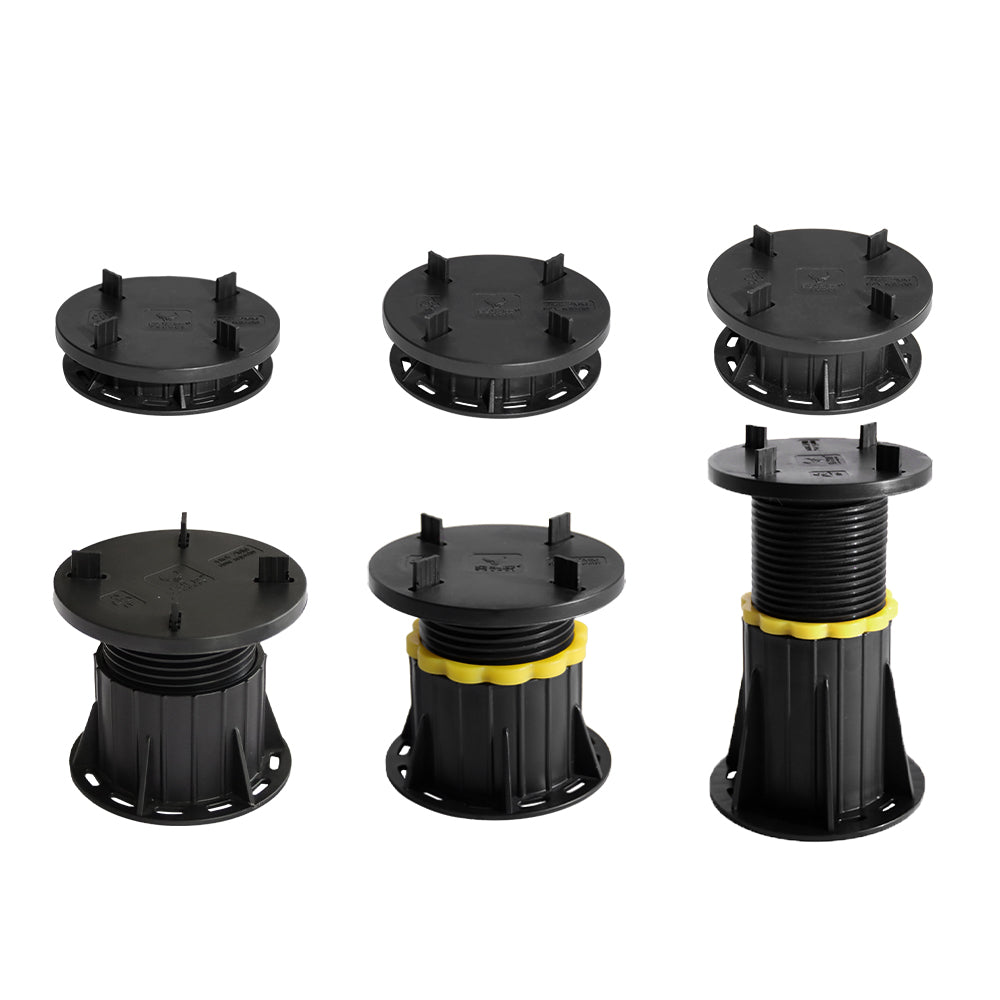

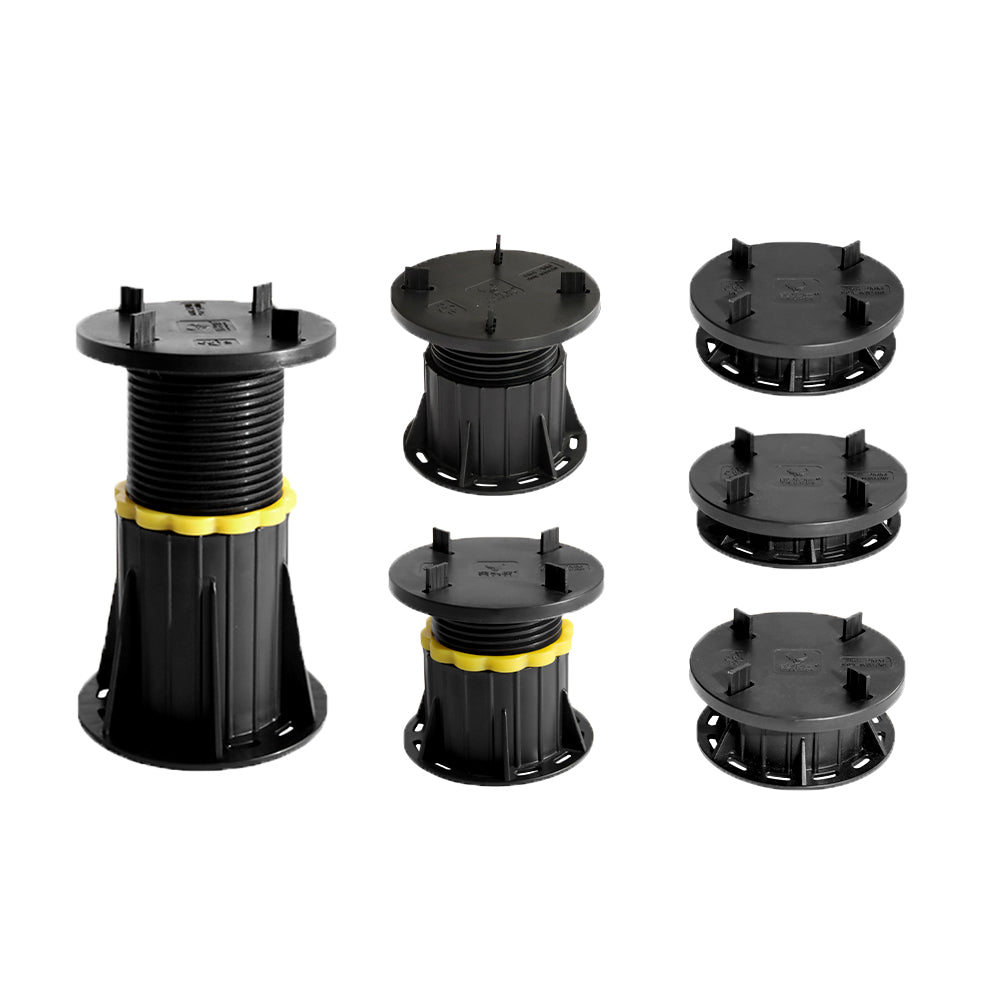

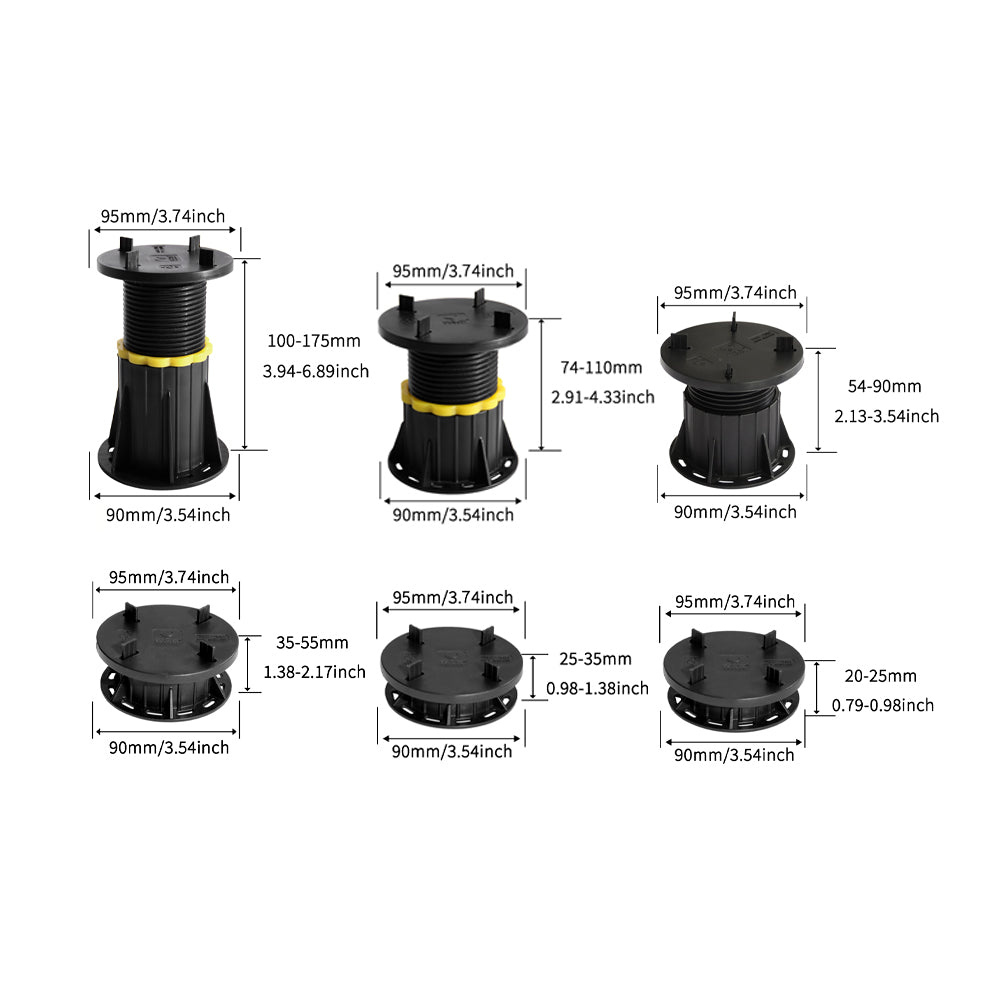

Model | Components | Adjustment range |
---|---|---|
KE-S-N01 | 18 mm head + 16 mm base | 20–25 mm |
KE-S-N02 | 23 mm head + 21 mm base | 25–35 mm |
KE-S-N03 | 33 mm head + 21 mm base | 35–45 mm |
KE-S-N04 | 33 mm head + 31 mm base | 35–55 mm |
KE-S-N05 | 52 mm head + 50 mm base | 54–90 mm |
Whether you specify them as adjustable joist supports for timber or composite frames, decking base supports for terraces and balconies, or adjustable decking feet for rapid levelling, KE-S “Black Bull” delivers precision, durability and British-standard practicality.
