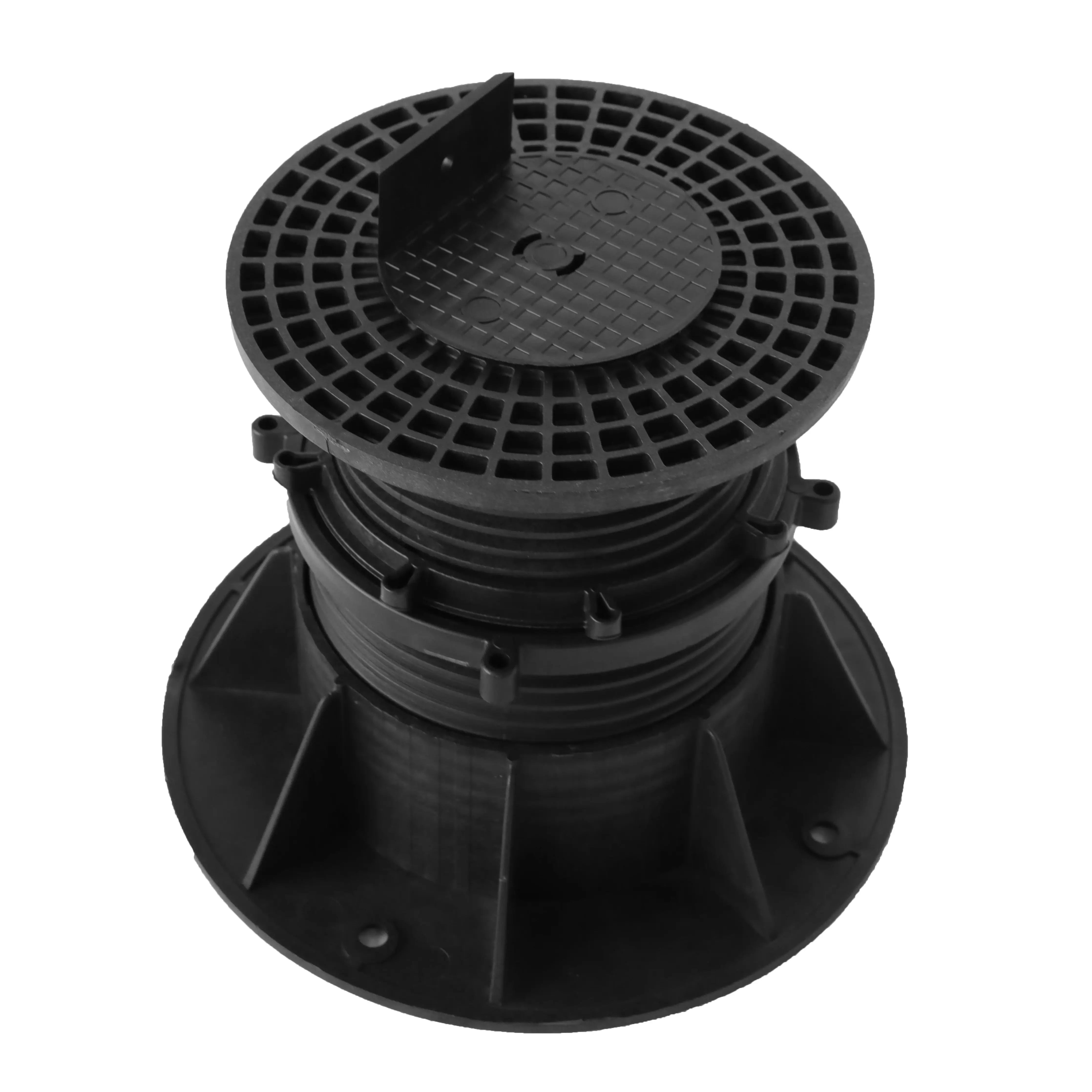

Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

Vendor: KEGRET
Product type: Stelzlager
$59.98
$59.98
Adjustable height: 90-140mm
Packaging Quantity: 10 PCS
Subtotal: $59.98
10 customers are viewing this product

Free Shipping

Free shipping for orders over $200

Personal Customisation

Please contact customer service
Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

$59.98
Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

Sondermodell Kunststoff-Holzkiel - einseitiger Kiel

$59.98
Adjustable height: 90-140mm
Packaging Quantity: 10 PCS
Description
Description
x

Features: High load-bearing capacity, wide adjustment range, and compact design.

Applications: Ideal for lightweight terrace substructure pedestals on sloped surfaces or in projects requiring a specific gradient, such as roof terraces, courtyards, and balconies. These Kegret pedestals are also suitable for pedestals on gravel and terrace foundation pedestal systems.

Total height adjustment range: 90–260 mm

Safe load capacity: 1400–1800 kg

Note: The load-bearing capacity may decrease when additional extension parts are used. If the engagement between any two components is less than three thread turns, the load capacity will be significantly reduced.

Components

  • Support (Head): 60 mm, 80 mm, 100 mm, 130 mm, 180 mm – Suitable for R-Series, support surface Ø 150.0 mm, thickness 9.0 mm.
  • Base Plate (Base): 60 mm – Diameter 200.0 mm, perforated base design.
  • Thread Connector: 70 mm.
  • Fixing Ring (Fix Collar): Black.

Model and Size Table

Model Components Adjustment Range
KE-NR0-01 60 mm Support + 60 mm Base + 70 mm Connector 90–140 mm
KE-NR0-02 80 mm Support + 60 mm Base + 70 mm Connector 90–160 mm
KE-NR0-03 100 mm Support + 60 mm Base + 70 mm Connector 100–180 mm
KE-NR0-04 130 mm Support + 60 mm Base + 70 mm Connector 130–210 mm
KE-NR0-05 180 mm Support + 60 mm Base + 70 mm Connector 180–260 mm

This product is perfectly suited for use as a pedestal for concrete slabs, terrace pedestal system, paving slab support, or pedestal edge system in various terrace pedestal foot constructions.
